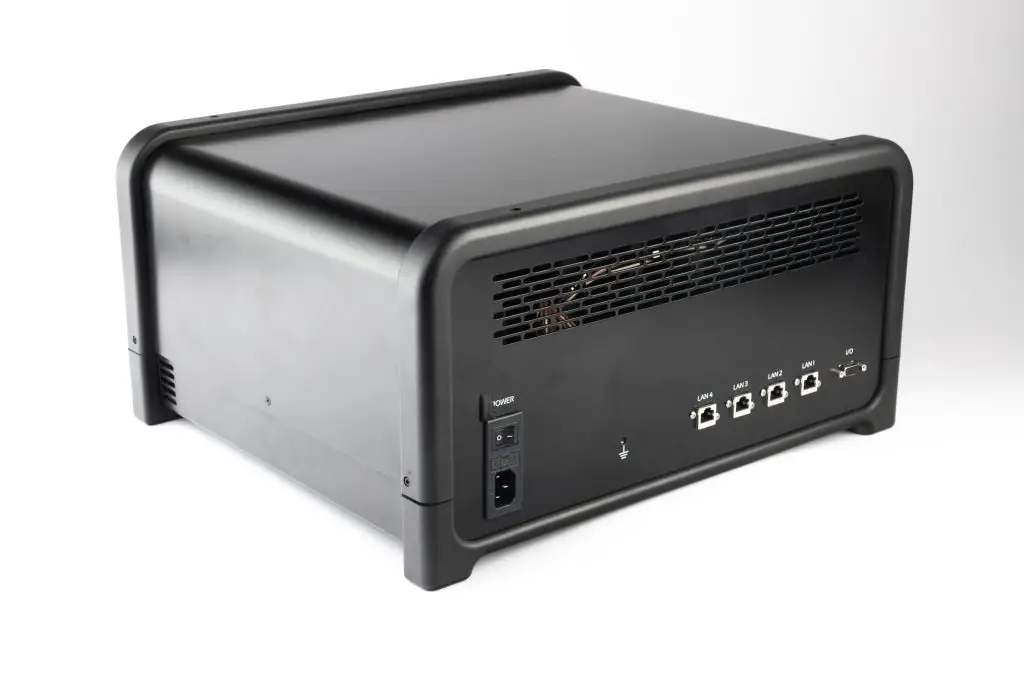

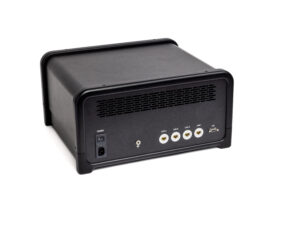

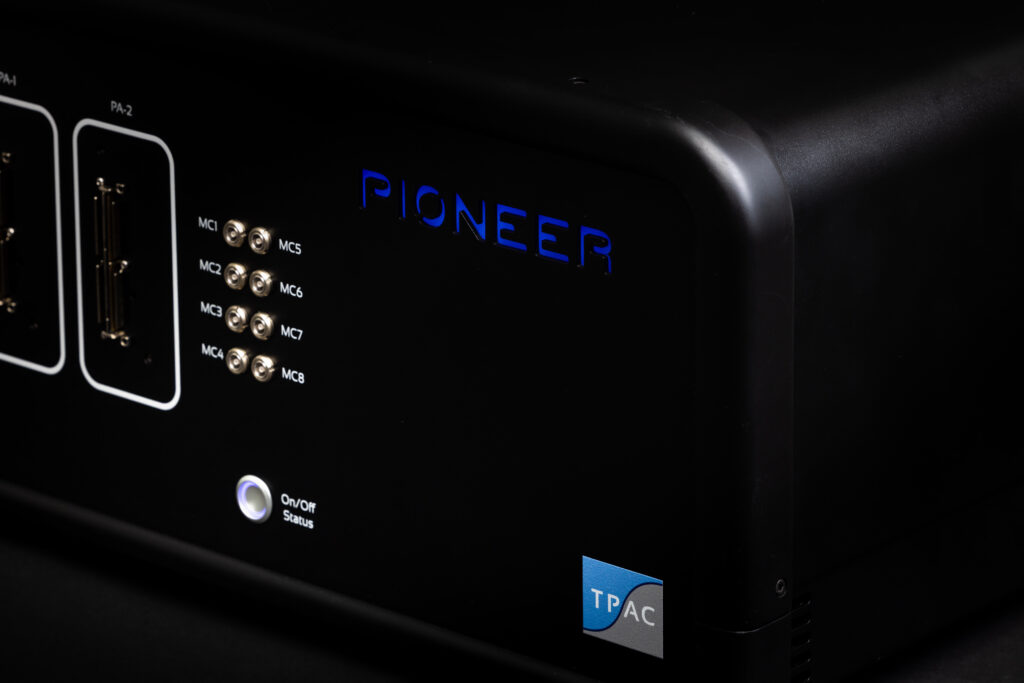

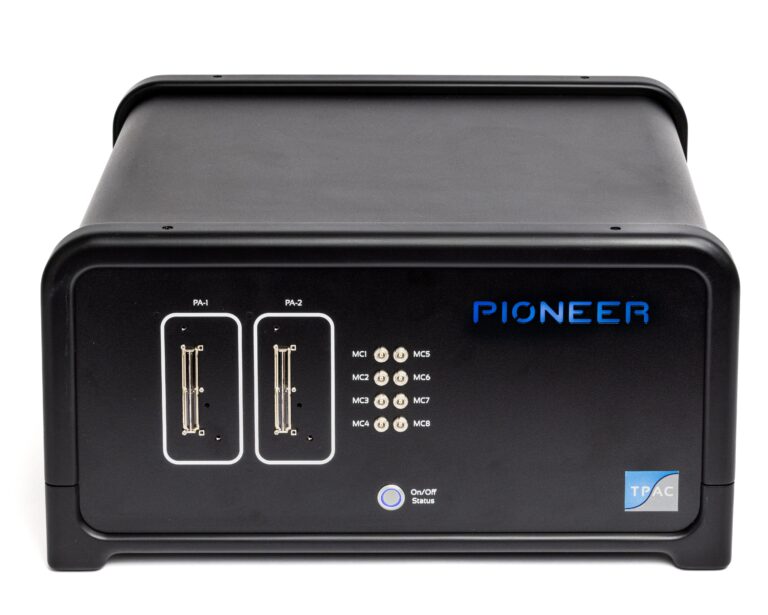

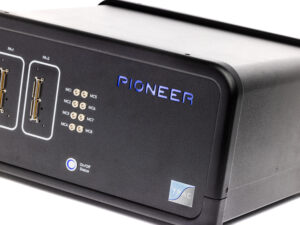

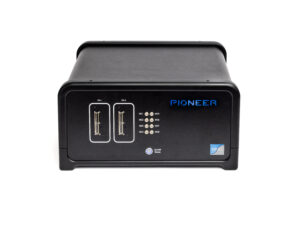

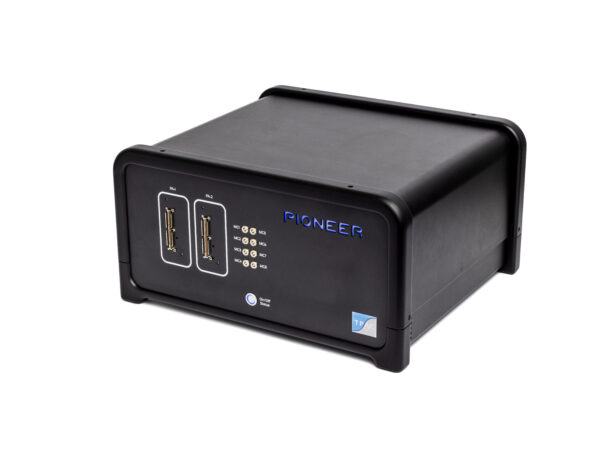

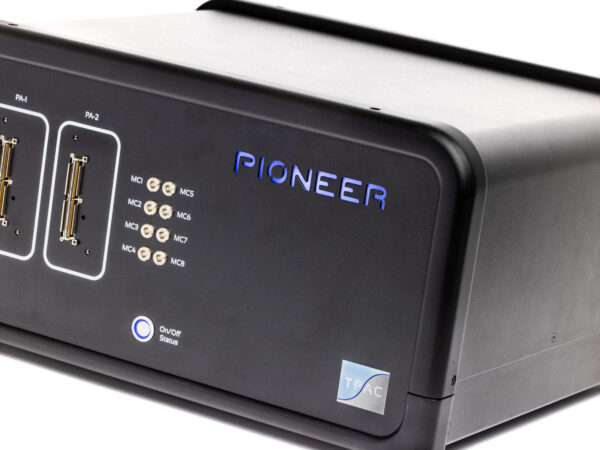

Pioneer

Top of the line stand-alone instrument for industry & labs.

Pioneer

Top of the line stand-alone instrument for industry & labs.

TRANSCENDING BOUNDARIES IN ULTRASONIC TESTING TECHNOLOGY

Unlock innovative possibilities with infinite software possibilities, from standard configurations to custom solutions for your application.

This future-proof device seamlessly integrates phased array, FMC, advanced TFM technologies and single-element probe multi-channels.

The Pioneer features a large channel count, ultra-high-speed capability (data throughput ranging from 100 MB/s up to several GB/s), and the flexibility of scalable multi-technologies.

Whether you’re managing a manufacturing process, conducting groundbreaking research, or developing a specialized application, the Pioneer delivers cutting-edge advanced technology adaptable to any setting.

Perfect for industrie, R&D labs, and academia

Technologies

– Phased Array Ultrasonic Testing
– FMC/TFM
– Advanced Imaging Techniques
– Air Coupled Ultrasonic Testing
– Multi Channel

Applications

– Research
– Robot application
– Inline Inspection
– Composite Inspection
– Field Inspection
– Corrosion Inspection
– Weld Inspection

SPECIFICATIONS

Unmatched Technical Versatility

Phased Array: linear, sectorial, parallel, DDF and zone focusing
Channel counts: from 16 up to 1024 parallel channels
Scanning / multiplexing from 16 to 128 ch or from 64 to 256. (Multiplexed ratio 1:2 up to 1:8)

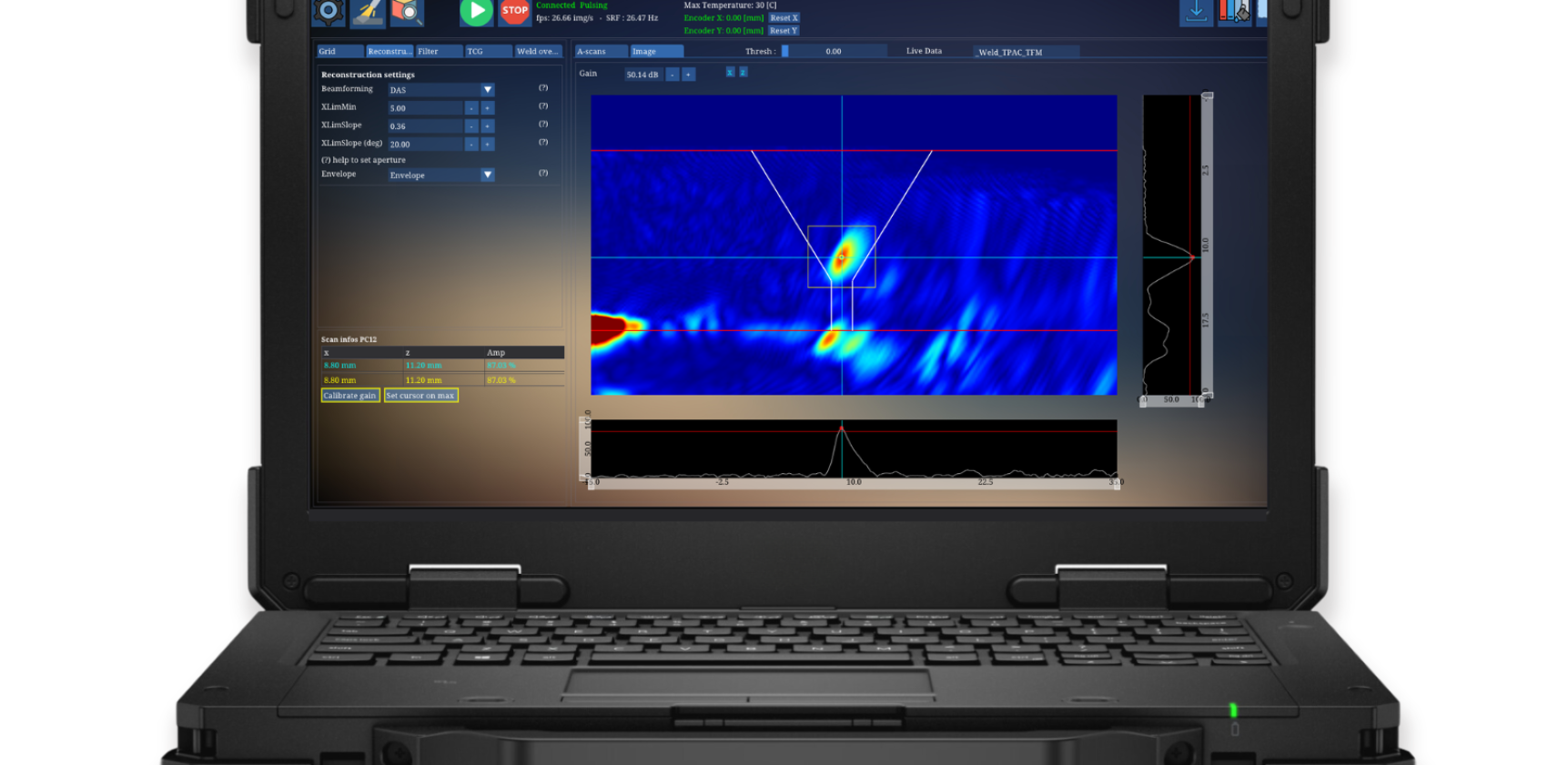

General purpose advanced TFM end-user software ARIA
Real time adaptive techniques on complex shapes

New techniques such as nonlinear acoustics or Arbitrary Waveform Emission
Standard SDK with example source code (C++, C#, MATLAB, LabVIEW, etc)
High-level API with full FMC/TFM techniques, such as a multi-mode APWI and PWI to speed up your acquisition on complex shapes
TFM Toolbox (low-level TFM API Library, various algorithms and combinations)
