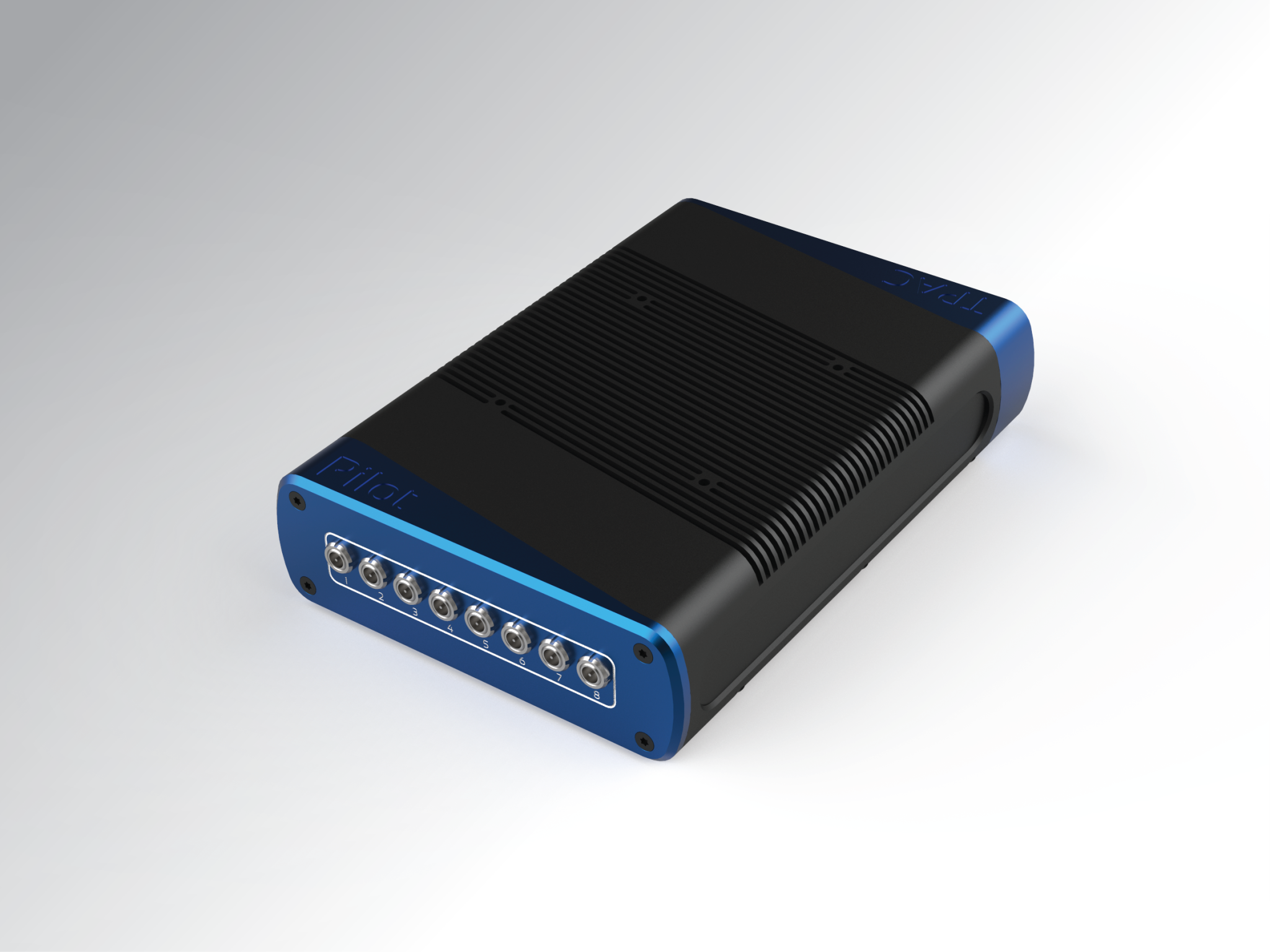

Pilot

The Pilot line offers the next generation multi-channel UT device for your most demanding UT inspection needs across various industries.

Compact and powerful, this 8-channel full parallel, or up to 64 multiplexed, unit pushes the boundaries of the UT benchmark.

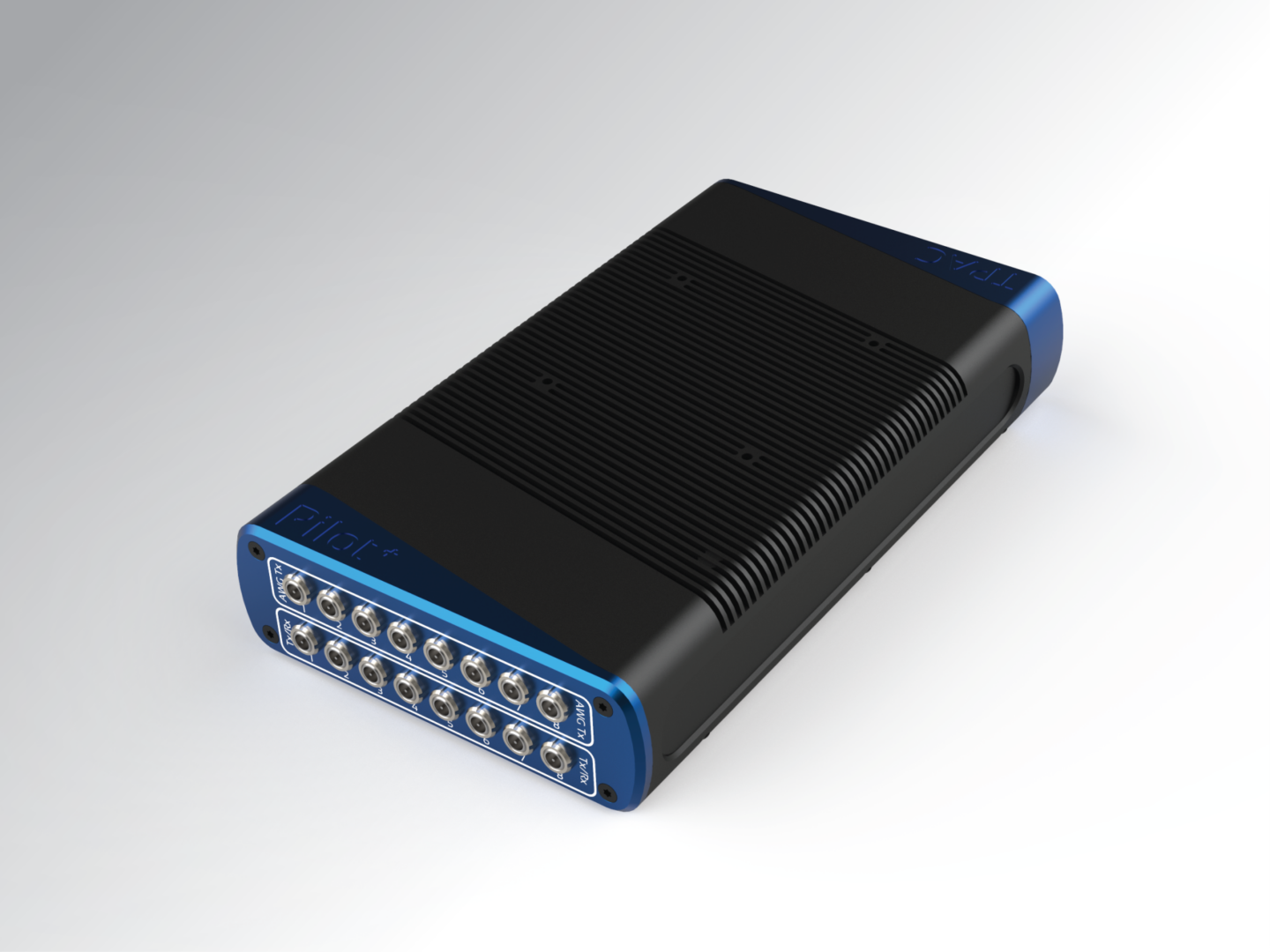

Pilot +

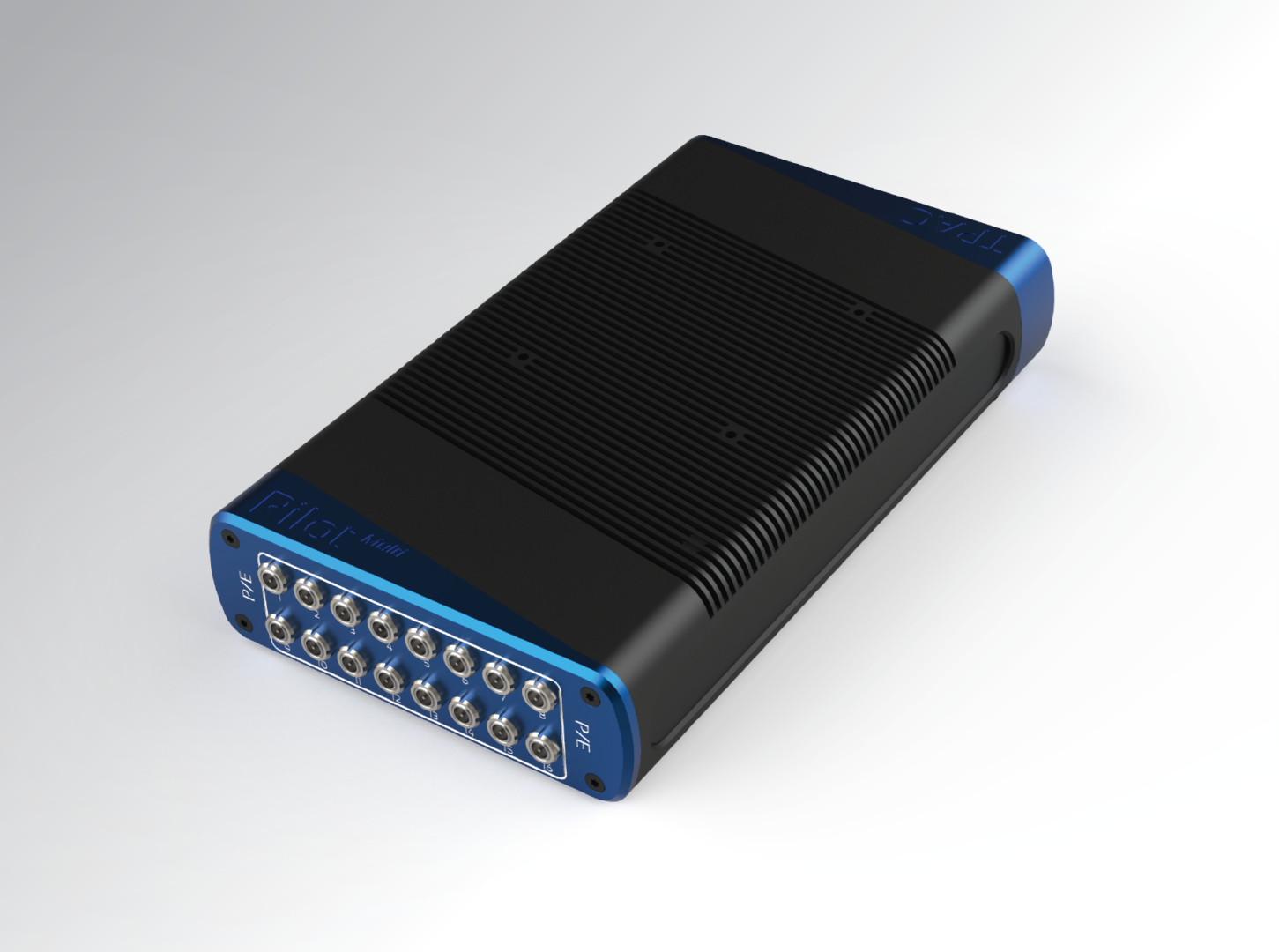

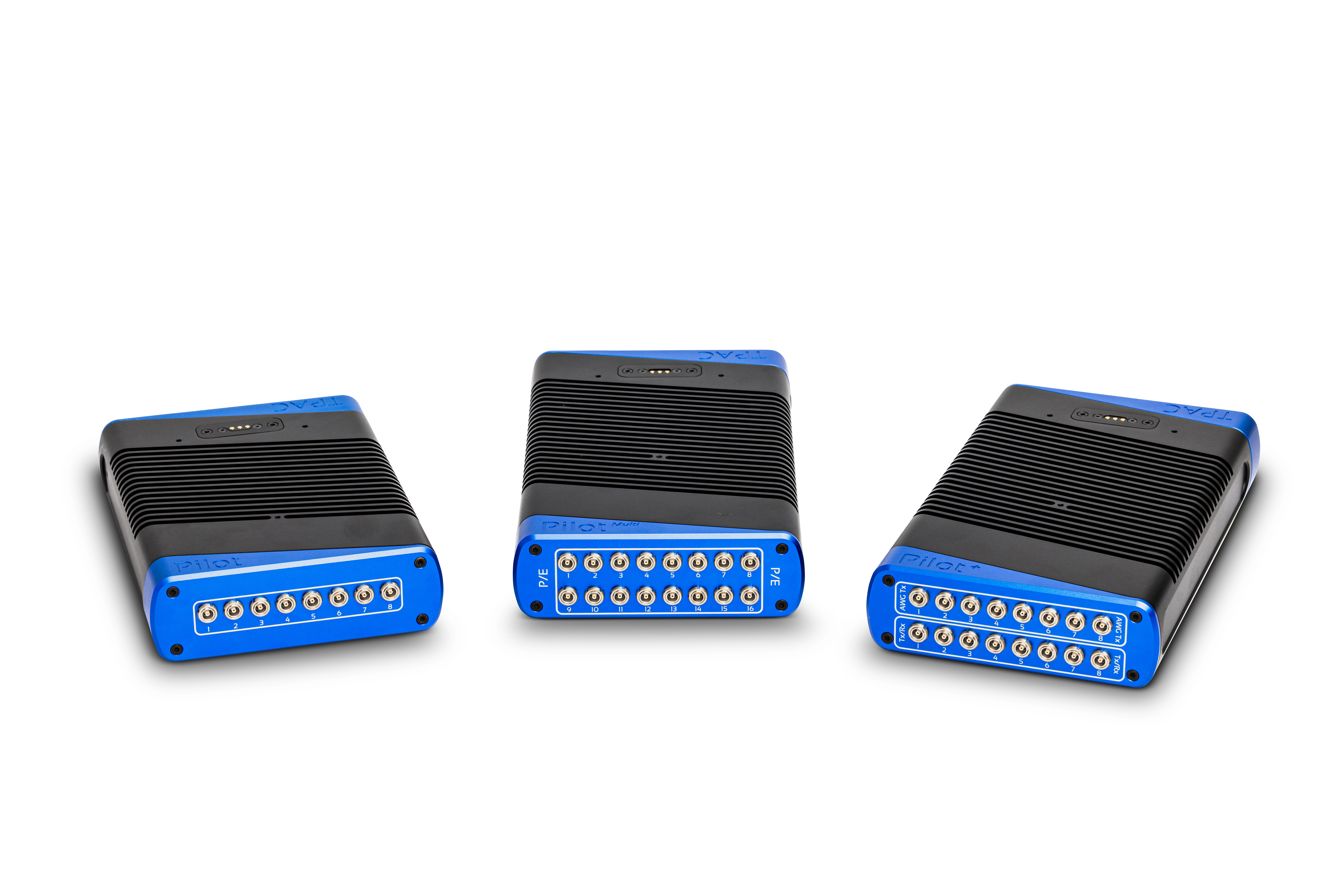

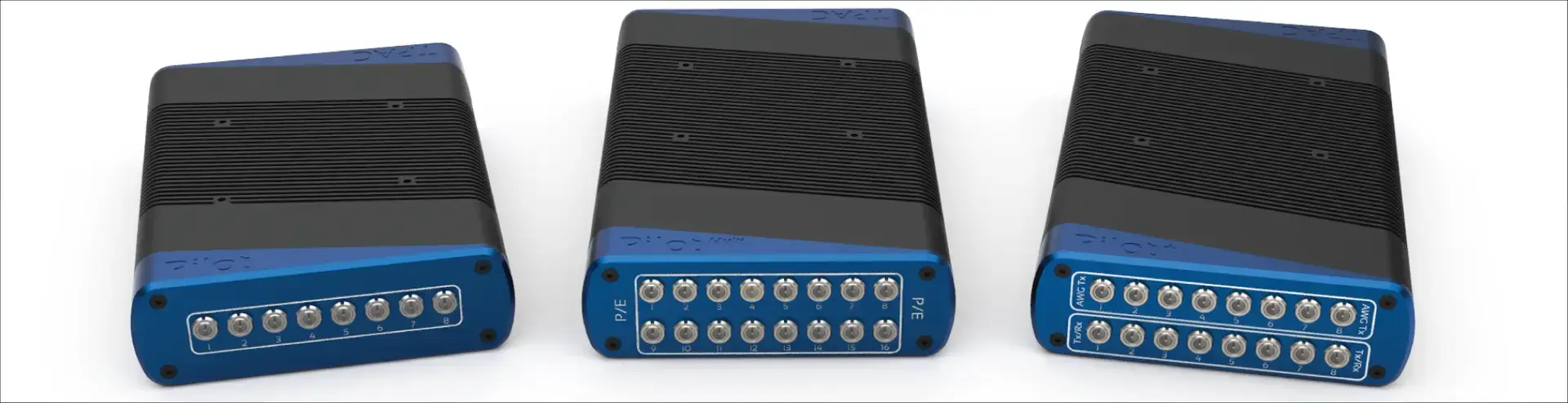

	Pilot Multi	Pilot	Pilot +
Configuration	16 (multiplexed)	8 (parellel)	8 (parellel)
Receiver Gain	110 dB	110 dB	167 dB
Acquisition Resolution	14 bits	14 bits	27 bits
Pulser Type	Unipolar Negative	Unipolar Negative	Unipolar Negative Bipolar AWG (option)
Pulser Voltage	100 V (200 V option)	400 V	400 V (Unipolar Neg) +-100 V (Bipolar/AWG)
Communication Link	LAN 1 Gb	LAN 1 Gb	LAN 1 Gb
Dimensions	240x140x35 mm / 9.45x5.51x1.77 in	240x140x35 mm / 9.45x5.51x1.77 in	240x140x35 mm / 9.45x5.51x1.77 in
Weight	< 1.5 Kg / 3.3 lb	< 1.5 Kg / 3.3 lb	< 1.5 Kg / 3.3 lb
