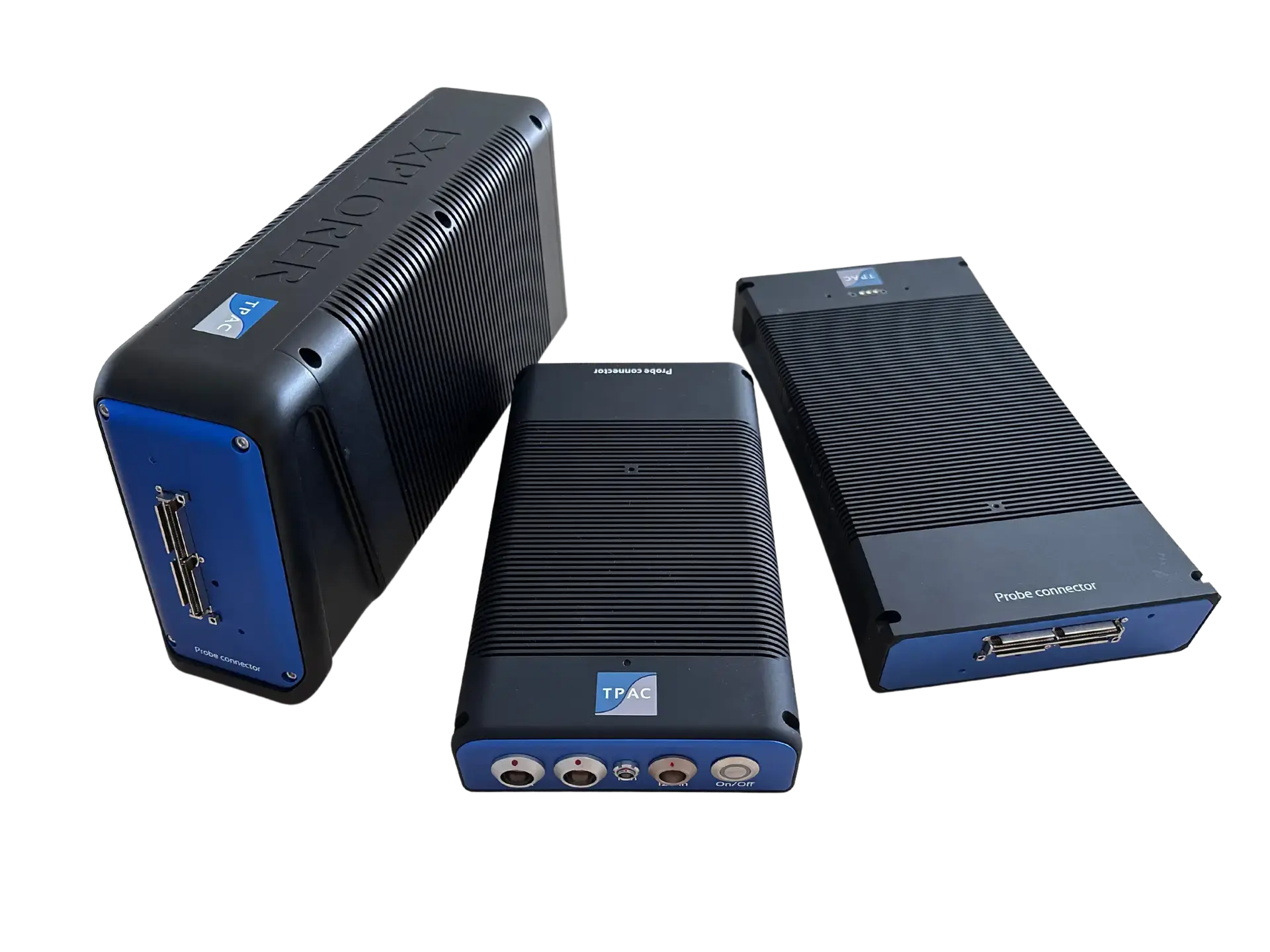

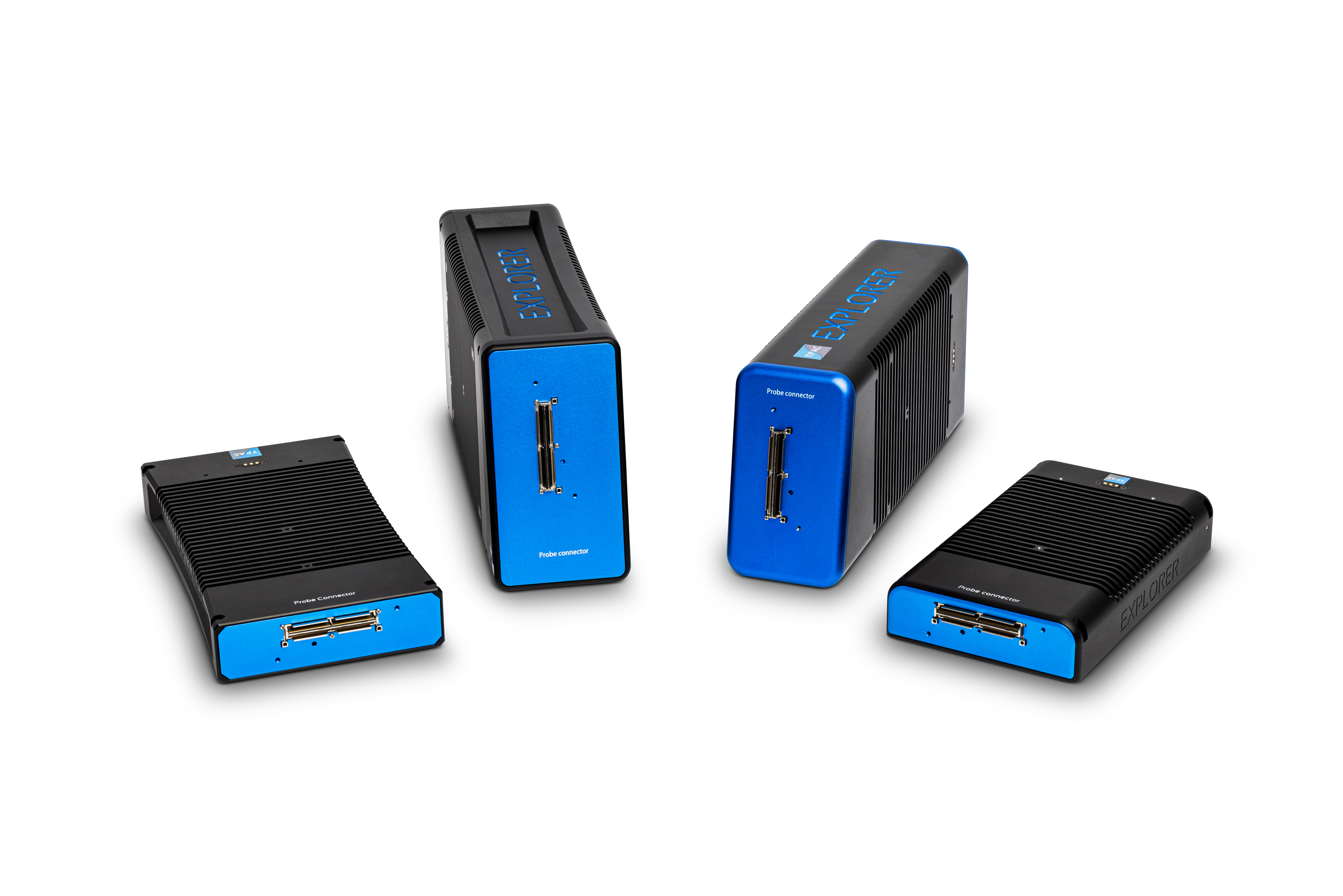

Explorer

The Explorer line offers the most versatile Phased Array, FMC/TFM Advanced Imaging Techniques (PWI, PWI, PCI,…) family of devices on the market.

With features that meet the requirements of your most demanding applications across all industries.

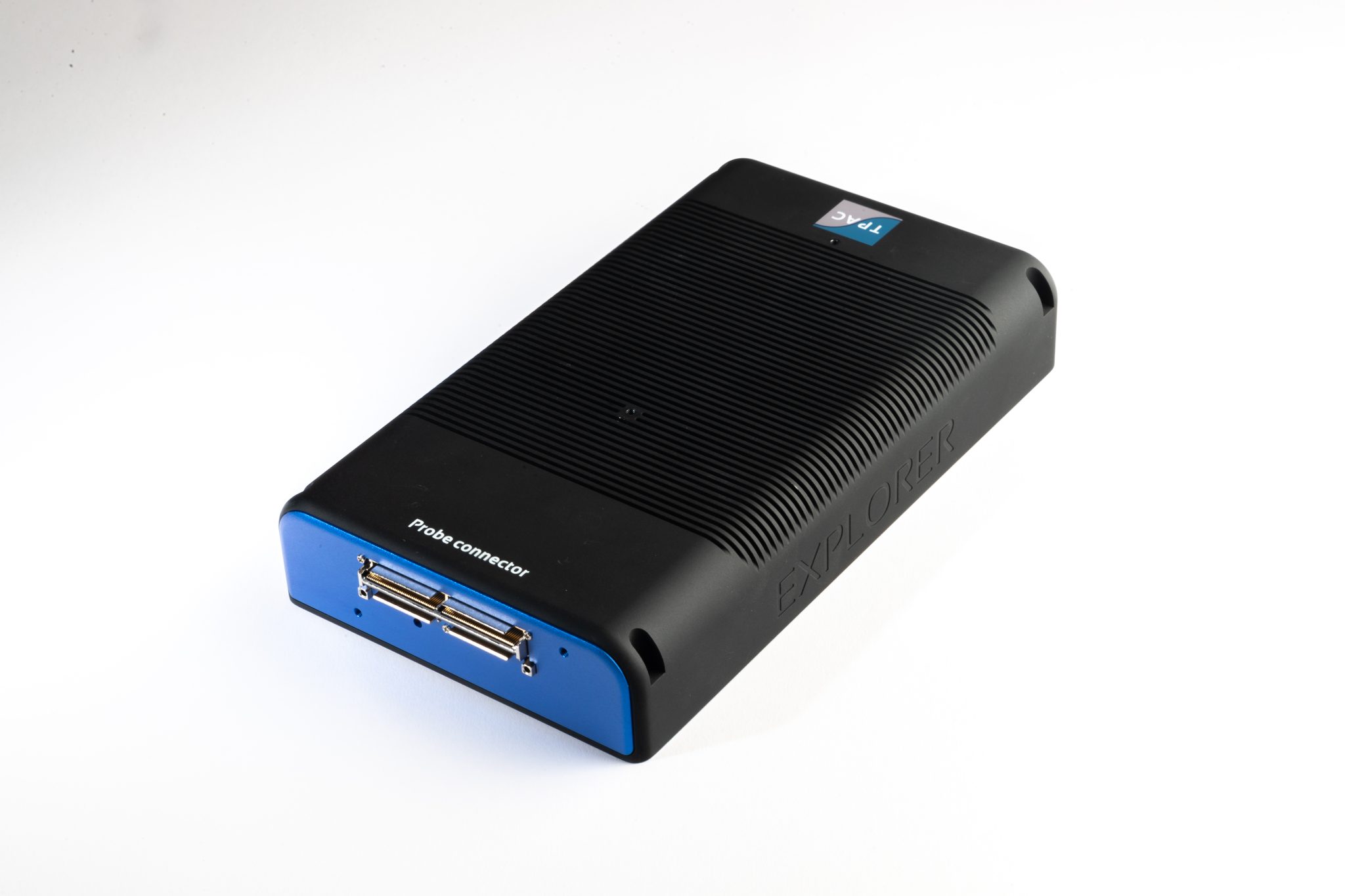

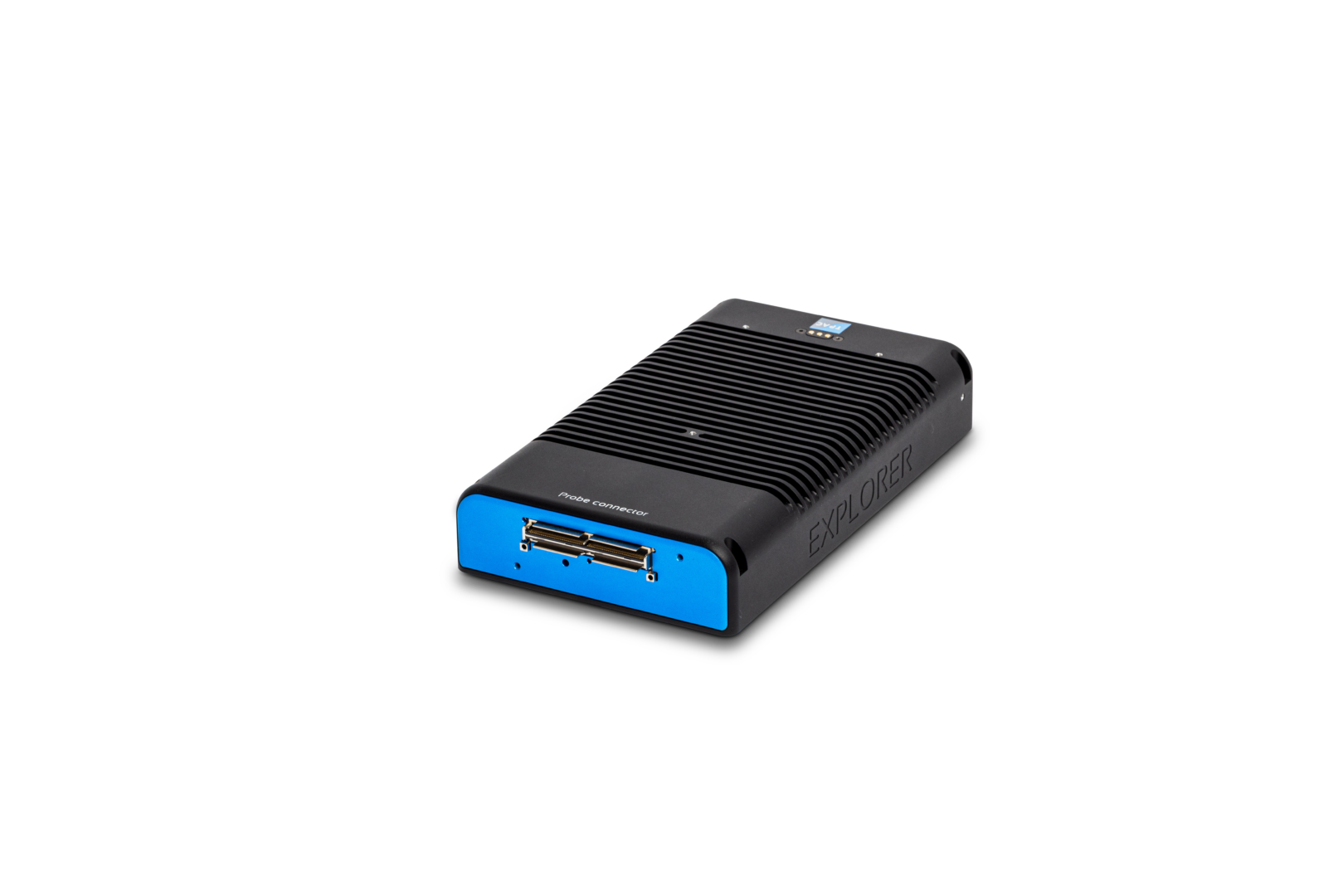

Explorer

  • Configuration: 64/128 Up to 64/256 channels
  • Communication Link: PWI at 100mm/s for 25mm thickness
    LAN - (Useful sustained UT Data Flow 100 MB/s)
  • Size: 64/128 : 225x130x43 mm - 8.86x5.12x1.69 in
  • Weight: 64/128 : < 1.3 Kg / 3.75 lb - 64/256 : < 2 Kg / 4.41 lb
More details

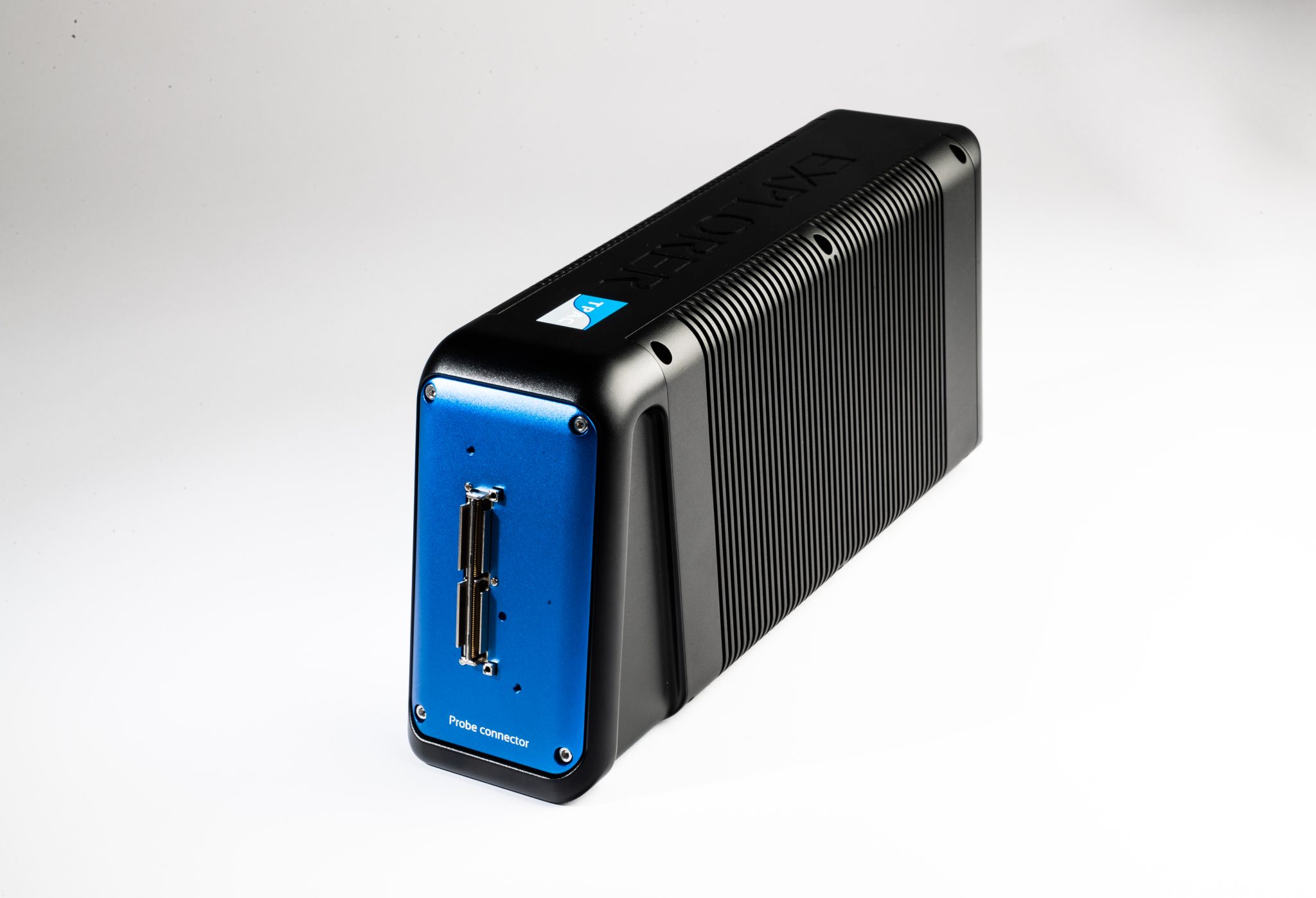

Explorer 128

  • Configuration: 128/128 channels
  • Communication Link: PWI at 100mm/s for 25mm thickness
    LAN - (Useful sustained UT Data Flow 200 MB/s)
  • Size: 64/128 : 300x140x80 mm - 11.81x5.51x3.15 in.
  • Weight: 64/128 : < 2.9 Kg / 6.39 lb
More details

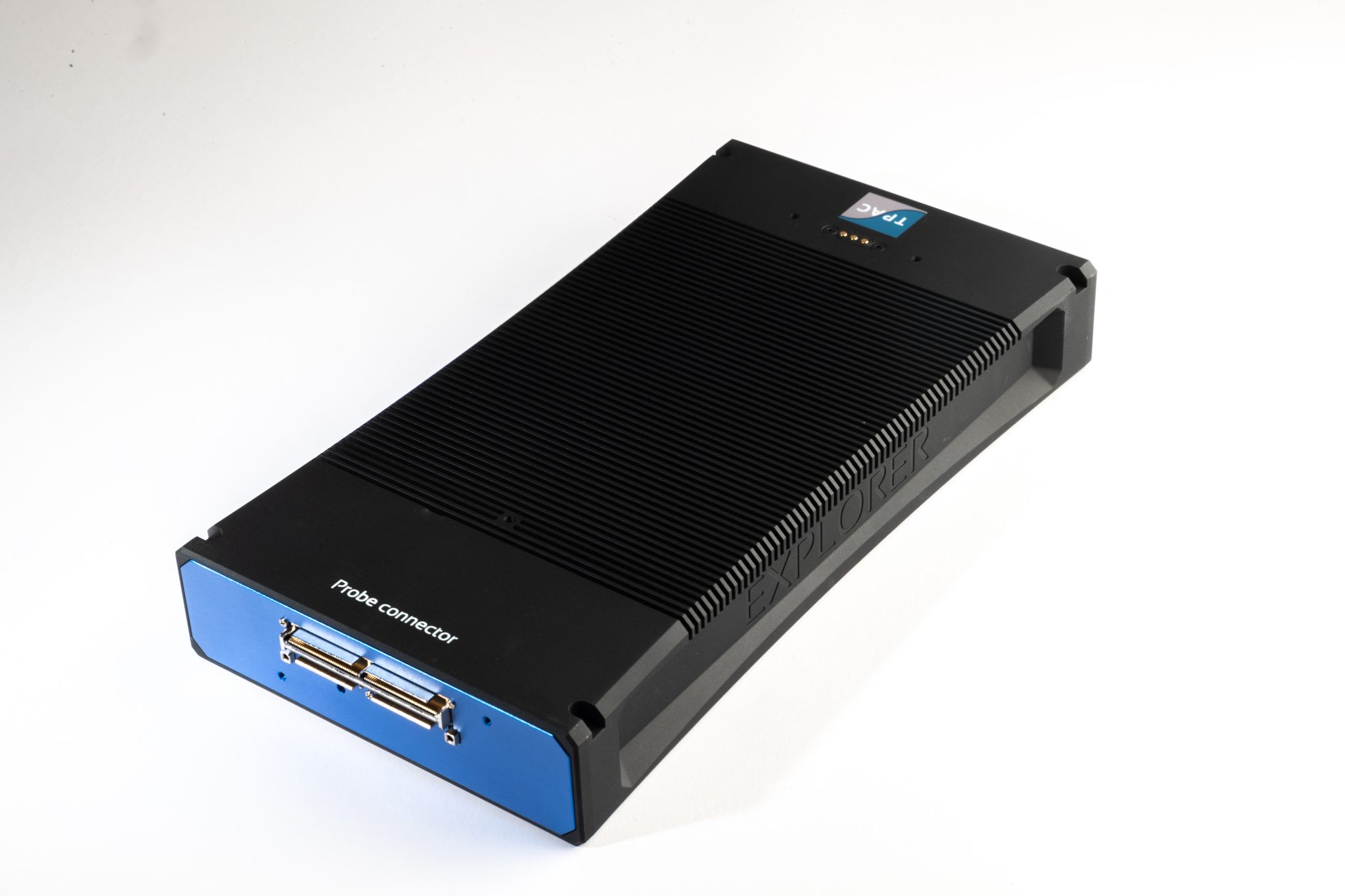

Explorer Max

  • Configuration: 64/64, 64/128, 64/256 channels
  • Communication Link: Useful sustained UT Data Flow 1 GB/s = 200mm/s FMC for 25 thickness
    Link LAN (TCP/IP)
  • Size: 265x142x40 mm - 10.43x5.6x1.5 in.
  • Weight: 64/128 : < 1.5 Kg / 3.3 lb
More details

Explorer 128 Max

  • Configuration: 128/128 channels
  • Communication Link: Useful UT Data Flow 2GB/s
    Link LAN(TCP/IP) 2*10Gb
  • Size: 300x140x80 mm - 11.81x5.51x3.15 in.
  • Weight: 3 kg / 6.61 lb
More details
Explorer Explorer 128 Explorer MAX Explorer MAX 128
Configuration
From 16/64 up to 64/256
128/128
From 64/64 up to 64/128
128/128
Communication Link
LAN 1 Gb
(Data throughput 100 MB/s)
LAN 2x1 Gb
(Data throughput 200 MB/s)
10 Gb
(Data throughput 1 GB/s)
2*10 Gb
(Data throughput 2*1 GB/s)
Pulser type
Unipolar Negative
Unipolar Negative
Unipolar Negative
Unipolar Negative
Pulser Voltage
100 V (200 V option)
100V (200V option)
100V (200V option)
150V (200V option)
Dimensions
64/128 : 200x130x43 mm /
7.87x5.12x1.69 in
300x140x80 mm /
11.81x5.51x3.15 in
265x142x40 mm /
10.43x5.6x1.5 in
300x140x80 mm /
11.81x5.51x3.15 in
Weight
64/128 : < 1.7 Kg / 3.7 lb
64/256 : < 2 Kg / 4.4 lb
< 2.9 Kg / 6.4 lb
64/128 : < 1.5 Kg / 3.3 lb
3.0 kg / 6.6 lb

Explorer
Explorer 128
Explorer MAX
Explorer 128 MAX
  • Configuration
From 16/64 up to 64/256
128/128
From 64/64 up to 64/128
128/128
  • Communication Link
LAN 1 Gb
(Data throughput 100 MB/s)
LAN 2x1 Gb
(Data throughput 200 MB/s)
10 Gb
(Data throughput 1 GB/s)
2*10 Gb
(Data throughput 2*1 GB/s)
  • Pulser Type
Unipolar Negative
Unipolar Negative
Unipolar Negative
Unipolar Negative
  • Pulser Voltage
100 V (200 V option)
100V (200V option)
100V (200V option)
150V (200V option)
  • Dimensions
64/128 : 225x130x43 mm /
8.86x5.12x1.69 in
300x140x80 mm /
11.81x5.51x3.15 in
265x142x40 mm /
10.43x5.6x1.5 in
300x140x80 mm /
11.81x5.51x3.15 in
  • Weight
64/128 : < 1.7 Kg / 3.7 lb
64/256 : < 2 Kg / 4.4 lb
< 2.9 Kg / 6.4 lb
64/128 : < 1.5 Kg / 3.3 lb
3.0 kg / 6.6 lb
More details
More details
More details
More details
